Product description
· Used to reduce the packaging volume, prevent dust, slippery, prevent oxidation of portable vacuum packaging machine
· Sensor and digital control of time
· Full stainless steel material, smooth work surface
Application
· Applied to industry
Advantage
· Durable and excellent performance
Product specifications

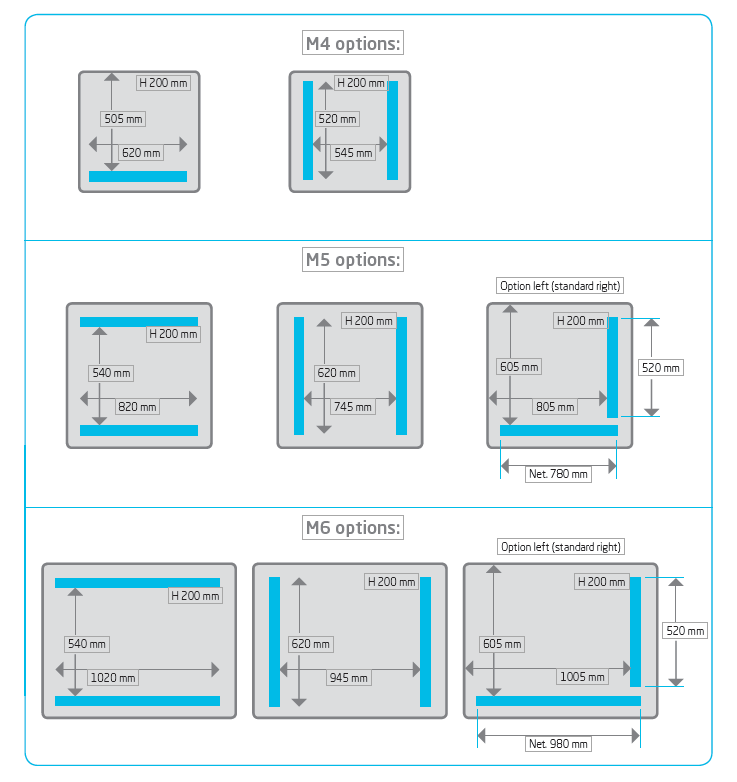

| Model | Sealing length | Product height | Useful chamber size (WxDxH) | ||||
| M4 | L:620 mm | S&S:2×520 mm | L&S:- | max.200 mm | max.620×505×200 mm (L) | ||
| M5 | L:2×820 mm | S&S:2×620 mm | L&S:780×520 mm | max.210 mm | max.805×605×200 mm (LS) | ||
| M6 | L:2×1020 mm | S&S:2×620 mm | L&S:980×520 mm | max.210 mm | max.1005×605×200 mm (LS) | ||
| Model | Outside dimension (WxDxH) | Standard voltage* | Power consumption | Weight | |||
| M4 | 735×900×1130 (1470**) mm | 400-3-50 Hz | 3,3 kW | 180 kg | |||
| M5 | 935×1000×1140 (1540**) mm | 400-3-50 Hz | 3,5 kW | 240 kg | |||
| M6 | 1135×1000×1140 (1540**) mm | 400-3-50 Hz | 3,5 kW | 280 kg | |||
*Machines can be supplied with all world wide voltages applicable ** Open cover requires more space
Options
| Model | Digital time control | Sensor control | Seal | seal configuration | Gas | Pump capacity | Cycle time |
| M4 | 10 programs | sensor/H2O | Double/CC/CCC/2S*** | L S&S | Gas | 40 or 63 m3 | 20-40 sec |
| M5 | 10 programs | sensor/H2O | Double/CC/CCC/2S | L&L S&S L&S | Gas | 63 or 100 m3 | 25-35 sec |
| M6** | 10 programs | sensor/H2O | Double/CC/CCC/2S | L&L S&S L&S | Gas | 100 m3 | 25-35 sec |
**Model M6 standard coverheight 210 mm, optional cover 260 mm height *** CC = Clean Cut, CCC = Clean Cut Controlled, 2S = Two Sides
