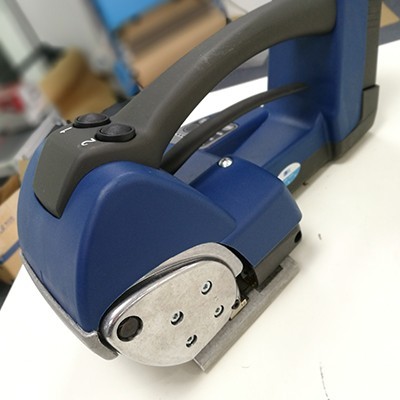

Battery strapping tool for polyester strap with vibration sealing
Dimensions
| Length: | 300 mm ? 11.8” |
| Width: | 150 mm ? 5.9” |
| Height: | 160 mm ? 6.3” |
| Weight with battery: | 3.9 Kgs ? 8.6 lbs |
Feeding
| Battery: | 14.8V-2 A/h LI-PO |
Performance
| Min. tension force: | 300N |
| Max. tension force: | 2500N |
| Tensioning speed: | 16mt/m |
| Sealing: | Vibration sealing |
| Joint strength: | 80% of breaking strength *variable according to strap type |
Model
| TYPE | STRAP | THICKNESS |
| ITA24 / 13-16mm with two batteries and charger | PP-PET | 13-16 mm ? 1/2”-5/8” | 0.5 mm - 0.019” ? 1.05 mm - 0.041” |
Operation modes
Fully Automatic
Semi Automatic
Manual
With Fully Automatic Mode tensioning, welding and strap cutting are performed with only one push of a button.
